What is an Enterprise Service Bus?

An Enterprise Service Bus (ESB) is a software product that provides a platform for integrating various applications in a service-oriented architecture (SOA) environment, managing web services, and message brokering between them.

Introduction

Aqualogic Service Bus Architecture

An Enterprise Service Bus (ESB) is a software product that provides a platform for integrating various applications in a service-oriented architecture (SOA) environment, managing web services, and message brokering between them.

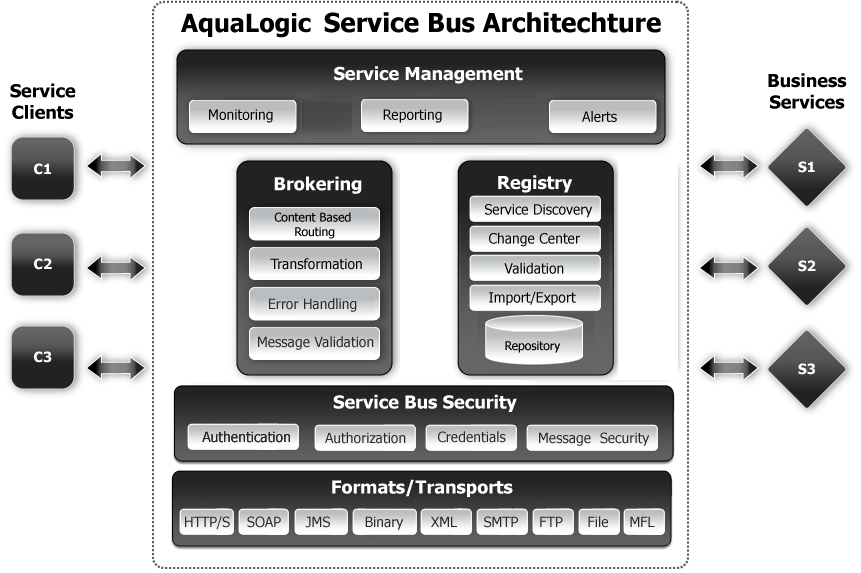

One example of an ESB is BEA Aqualogic Service Bus, offered by Oracle. The image here is from their public documentation and shows the components of an Enterprise Service Bus:

Architectures underpinned by an ESB support the use of multiple protocols and message formats, allowing different applications to communicate with each other seamlessly. The best enterprise service bus depends on the specific needs of an organization. Some popular ESB tools include MuleSoft, Apache ServiceMix, and IBM Integration Bus.

In a service-oriented architecture, APIs are exposed as web services made available via specific formats and transports such as JMS or XML. An ESB is layered on top of those APIs to provide a more comprehensive solution that includes message routing, transformation, mediation, security, and so on.

ESBs are designed for environments that involve multiple systems communicating with each other, providing connections between services and the clients that access them. In contrast, Apache Kafka is a distributed streaming platform that is optimized for handling high volumes of data in real-time. ESBs are specifically designed for application integration in a service-oriented environment.

ESB vs Microservices vs ETL

ESB vs Microservices

In contrast, Microservice architectures represent an evolution of service-oriented architectures and enable the composition of entire applications from microservices communicating with each other by sending events over something like Apache Kafka, obviating the need for an ESB.

ESB vs ETL

ETL (Extract, Transform, Load) is a data integration process that focuses on moving data from one system to another, often between operational data stores and analytical systems such as data warehouses. ESBs, on the other hand, are designed to handle communication between distributed systems in real time. While ETL is focused on batch processing, ESBs are designed for real-time integration.

In summary, an ESB is a middleware solution that provides a platform for integrating various applications in a service-oriented architecture environment. It offers a more comprehensive solution than APIs, supports multiple protocols and message formats, and is optimized for real-time integration scenarios. ESBs differ from Kafka and ETL, and the best ESB for an organization depends on its specific needs.

Why and When to Use an ESB

ESB is a preferred middleware technology for organizations that need to integrate multiple applications and systems in real time. ESBs provide a comprehensive solution for message routing, transformation, and mediation, which makes it easier to manage multiple integrations. The use of ESBs is particularly beneficial for organizations that are adopting a service-oriented architecture (SOA) approach, as it allows for communication between different services. ESBs provide a comprehensive solution for message routing, transformation, and mediation, which makes it easier to manage multiple integrations.

Kafka and Confluent, are designed for real-time data streaming. They are better suited for use cases that involve high volumes of data that need to be processed and analyzed in real-time, such as microservices architectures. They are optimized for handling large amounts of data and provide a distributed streaming platform that can be scaled horizontally.

Kafka and Confluent are better than ESB in scenarios where real-time streaming of data is required, and data processing needs to happen in real-time. They provide better performance and scalability when compared to traditional ESBs and are therefore a better fit for microservices architectures. However, the choice of technology ultimately depends on the specific needs of the organization and the nature of the integration required.

Benefits

Top benefits of using ESB architecture:

Simplifies Integration

Provides a central hub for routing, transformation, and mediation of messages, making it easier to manage multiple integrations.

Supports Multiple Protocols and Formats

Supports multiple protocols and message formats, allowing different applications to communicate with each other seamlessly.

Improves Interoperability

Enables interoperability between different applications and systems, allowing them to work together seamlessly.

Facilitates Service Reusability

Enables the creation of reusable services that can be easily accessed by different applications and systems.

Increases Scalability

Designed to handle high volumes of messages, making it easier to scale up or down based on demand.

Enhances Security

Can be configured to provide secure communication between different applications and systems, ensuring the confidentiality and integrity of data in transit.

Challenges

When considering the adoption of enterprise service bus (ESB) technology, it is important to understand both its benefits and challenges. Here are six challenges that organizations may face when implementing an ESB:

  • Complexity: ESB can be complex to set up and configure, requiring specialized skills and expertise.
  • Cost: ESBs can be expensive, especially for small and medium-sized businesses.
  • Performance: ESBs can introduce latency and overhead, which can impact performance in real-time scenarios.
  • Vendor Lock-in: ESBs are often proprietary and can lead to vendor lock-in, making it difficult to switch to other technologies.
  • Maintenance: ESBs require ongoing maintenance and upgrades, which can be time-consuming and expensive.
  • Integration with Legacy Systems: Integrating ESB with legacy systems can be challenging and may require additional customization and development.

Common Messaging Frameworks Compared

Messaging frameworks are a publish/subscribe alternative to ESBs for managing communication between distributed applications. Here are five common messaging frameworks and a brief description of each:

  • Apache Kafka: A distributed streaming platform that can handle high volume data streams and supports real-time data processing.
  • RabbitMQ: A message broker that implements the Advanced Message Queuing Protocol (AMQP) and can handle a wide range of messaging patterns.
  • ActiveMQ: An open-source message broker that supports a variety of messaging protocols and features, including high availability and clustering.
  • Amazon Simple Queue Service (SQS): A fully managed message queuing service that enables decoupling and scaling of distributed systems.
  • Google Cloud Pub/Sub: A messaging service that provides reliable, scalable, and real-time messaging between independent applications.

These messaging frameworks can provide an alternative to ESBs in certain scenarios, offering benefits such as scalability, flexibility, and cost-effectiveness.

Use Cases

ESBs have a wide range of use cases in enterprise architecture. They can provide a flexible and scalable solution for a range of enterprise architecture challenges, offering benefits such as efficiency, agility, and cost-effectiveness. Here are ten common uses for ESBs and a brief description of each:

Service Orchestration

ESBs can be used to orchestrate and manage services in a distributed architecture.

Data Integration

ESBs can integrate and transform data from disparate sources, enabling efficient data exchange between applications.

Legacy System Integration

ESBs can integrate with legacy systems to enable communication with modern applications.

Cloud Integration

ESBs can integrate cloud-based services with on-premises systems, providing a hybrid integration solution.

API Management

ESBs can be used to manage APIs, providing security, monitoring, and analytics features.

Business Process Management

ESBs can support business process automation, enabling organizations to streamline workflows and improve efficiency.

Event-Driven Architecture

ESBs can enable event-driven architecture, allowing applications to react to real-time events and triggers.

Data Analytics

ESBs can support data analytics by providing a central location for data integration and transformation.

Microservices

ESBs can be used to manage and orchestrate microservices, enabling service discovery, routing, and load balancing.

Security

ESBs can provide security features such as authentication, authorization, and encryption, ensuring secure communication between applications.

Modern, Real-Time Processing, Integration, and Streaming with Confluent

Typically, ESBs and other integration solutions like extract-transform-load (ETL) tools have been used to try to decouple systems. However, the sheer number of connectors, as well as the requirement that applications publish and subscribe to the data at the same time, mean that systems are never truly decoupled.

With Confluent, you can automate a seamless integration between different legacy and modern applications while complementing existing integration solutions like ESB or ETL tools.

As a complete, multi-cloud, distributed streaming platform, Confluent can also work with ESBs to offer a comprehensive solution for data integration and service orchestration.
